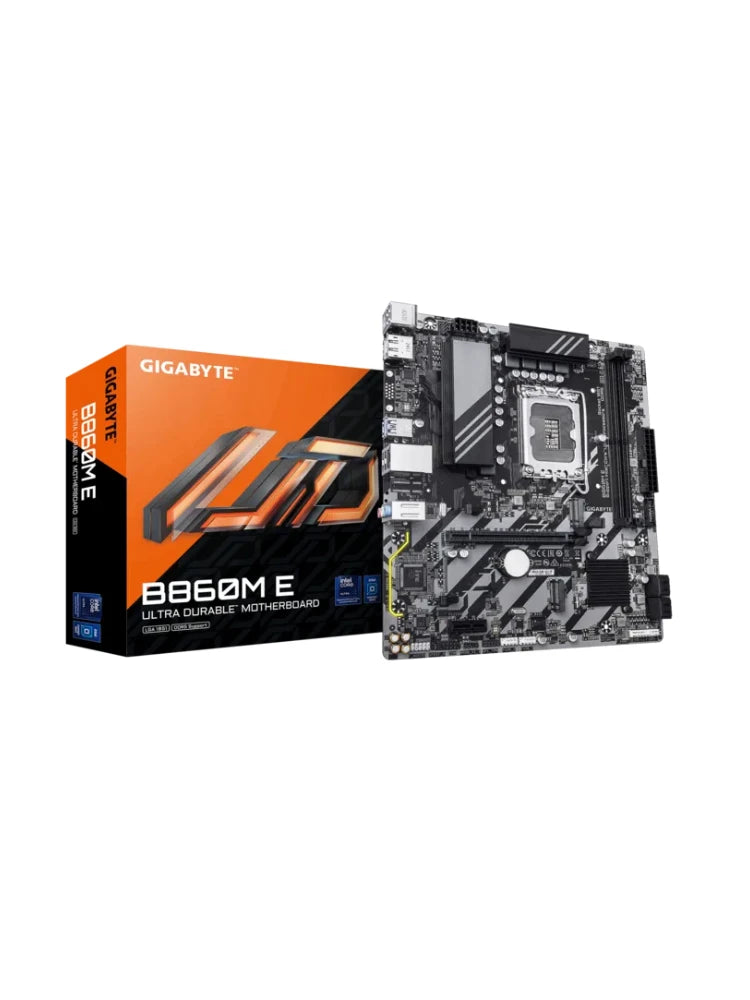

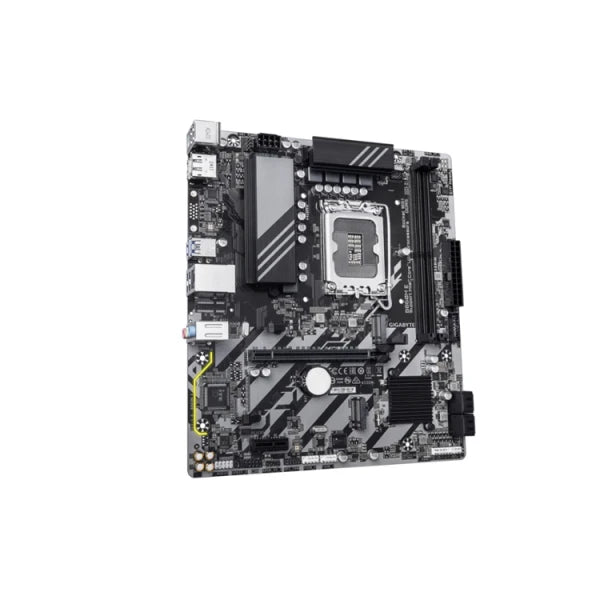

Motherboard: Gigabyte B860M E 1.0 2DDR5 LGA1851

Full Specifications

Model name B860M E 1.0

Form Factor ATX

Socket 1851

Chipset Intel B860

Compatibility Processors LGA1851 socket: Support for Intel® Core™ Ultra Processors

Max Memory 128GB

Memory Type DDR5

Max Memory MHz 8800 MHz

Number Of Memory Slots 2

Memory Slots Type DIMM

Version of PCI Express PCI Express 4.0, PCI Express 3.0

Internal I/O Ports 1 x Clear CMOS jumper, 1 x 24-pin ATX main power connector, 2 x M.2 Socket 3 connectors, 1 x front panel audio header, 4 x SATA 6Gb/s connectors, 1 x USB 3.2 Gen 1 header, 1 x front panel header, 1 x S/PDIF Out header, 1 x CPU fan header, 2 x USB 2.0/1.1 headers, 1 x system fan/water cooling pump header, 1 x serial port header

Internal I/O Ports 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only), 1 x CPU fan/water cooling pump header, 1 x 8-pin ATX 12V power connectors, 2 x addressable RGB Gen2 LED strip headers

Back I/O Ports 4 x USB 3.2 Gen 1 ports, 1 x HDMI, 1 x LAN (RJ-45), 2 x USB 2.0/1.1 ports, 3 x audio jacks, 1 x PS/2 keyboard/mouse port, 1 x DisplayPort

Operating System Support for Windows 10 64-bit, Support for Windows 11 64-bit

Dimensions 24.4 x 21.5 cm
