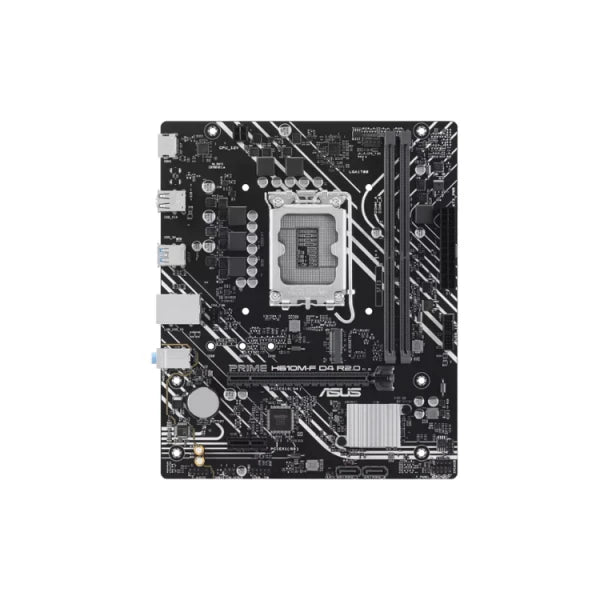

Motherboard: Asus PRIME H610M-F D4 R2.0 2DDR4 LGA1700 - 90MB1H70-M0EAY0

Full Specifications

Model name PRIME H610M-F D4 R2.0

Form Factor Micro ATX

Socket 1700

Chipset Intel H610

Compatibility Processors Intel® Socket LGA1700 for Intel® Core™ 14th & 13th Gen Processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors

Max Memory 64GB

Memory Type DDR4

Max Memory MHz 3200 MHz

Number Of Memory Slots 2

Memory Slots Type DIMM

Version of PCI Express PCI Express 3.0, PCI Express 4.0

Expansion Slots 1 x PCIe 4.0 x16 slot, 1 x PCIe 3.0 x1 slot

Internal I/O Ports 1 x speaker header, 1 x 4-pin +12V Power connector, 2 x SATA 6Gb/s ports, 1 x 4-pin Chassis Fan header, 1 x 24-pin Main Power connector, 1 x 4-pin CPU Fan header, 1 x M.2 slot (Key M), 1 x 10-1 pin System Panel header, 1 x Clear CMOS header

Internal I/O Ports 1 x Front Panel Audio header (F_AUDIO), 1 x USB 2.0 header supports 2 additional USB 2.0 ports, 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports

Back I/O Ports 4 x USB 2.0 ports (4 x Type-A), 1 x HDMI, 2 x USB 5Gbps ports (2 x Type-A), 3 x audio jacks, 1 x Realtek 1Gb Ethernet port

Dimensions 22.6 x 18.8 cm
